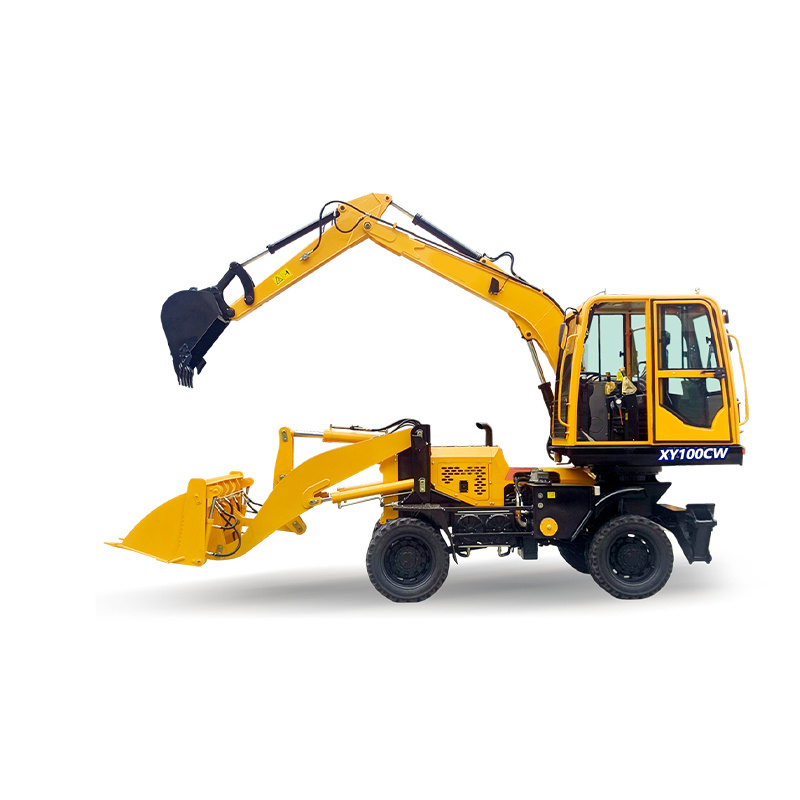

XY100CW Wheeled excavators and bulldozer

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}

Technical Parameters of JG100CW Multi-functional Backhoe Loader
Performance Parameters of JG100CW backhoe loader

Range of operation (Excavator parts)

Boom length of excavator

3475mm

Arm length of excavator

1850mm

Volume of bucket

0.25m³

Max. digging reach

6650mm

Max. digging reach on the ground

6360mm

Max. digging height

7110mm

Max. dumping height

5340mm

Max. digging depth

2740mm

Max. vertical digging depth

2140mm

Min. radius of gyration with the excavator arm
Min. radius of gyration with the excavator arm

2800mm

Excavator angle of rotation

360°

Range of operation (Loader parts)

Boom length of loader

2495mm

Width of bucket

1900mm

Volume of bucket

2.0m³

Max. dumping height

3100mm

Min. dumping reach

1530mm

Fork clamp grabbing capacity

3000kg

Tech performance and specification

Machine weight

8500kg

(Length*width*height)
Transport dimensions

6400*2250*3270mm

Engine brand

Yuchai YUCHAI

Rated power

75kW/2200r/min

Hydraulic system working pressure

25Mpa

Hydraulic system flow

150L/min

Metering gear pump

25L/min

Drive system flow

50L/min

Wheelbase

2330mm

Max. hauling force

30kN

Walking speed

30km/h

Grade climbing ability

58%/30°

Tyre model

195/85-20

Fuel tank capacity

200L

Hydraulic oil tank capacity

110L

Excavators are widely used in road construction, mining, agricultural and forestry clamping, water conservancy and electric power construction, bridge construction, urban construction, municipal construction and pipeline laying and other projects in the excavation of earth and stone, loading and unloading operations.
With the social development and changes in user needs, the modern excavator industry has gradually extended to agriculture, railway construction and laying projects while meeting the needs of municipal engineering and various working conditions.

With the rapid development of technology, the market is constantly changing, and the speed of many companies adopting new products is also accelerating, and new encirclements are forming. Establish the concept of "strategic breakthrough" in the industry, develop products in line with the market direction, and form the advantages of their own products to further clarify the development ideas of technological innovation: high-end/mid-end/low-end market. The company's product positioning is based on the original excavator, according to the actual needs of product upgrading and improvement. According to the different needs of customers for products, the market can be further segmented to meet the individual needs of customers. In addition to the research and development and upgrading of the original construction machinery wheel excavator, we will also produce some special customized equipment according to customer needs, railway maintenance equipment and other aspects of the series of product development and production.

RANGE OF OPERATION
Boom length 3475mm
Arm length 1850mm
Maximum digging reach 6650mm
Maximum digging depth 2740mm
Maximum digging height 7110mm
Minimum turning radius 2800mm
Maximum vertical digging depth 2140mm
DIMENSIONS
(Length*width*height)Transport dimensions 6400*2250*3270mm
Axle base 2330mm
Max. dumping height 3100mm
Volume of bucket 2.0m³
Width of bucket 1900mm
Boom length of loader 2495mm
Min. dumping reach 1530mm
Fork clamp grabbing capacity 3000kg
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation 360°
Machine weight 8500kg
Engine model YUCHAI(IV)
Rated power 75kW
Rated speed 2200r/min
Hydraulic system working pressure 25Mpa
Hydranlic system flow 150L/min
Walking speed(高速/低速)(High speedlow speed) 30km/h
Max hauling force 30kN
Grade climbing ability 58%/30°
Volume of bucket 0.25m3
Capacity of the fuel tank 200L
Hydraulic tank capacity 110L
轮胎型号 195/85-20
